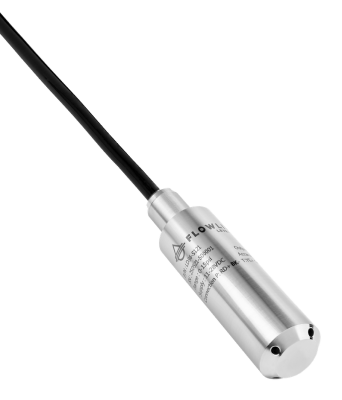

Flowline LD36-S121 DeltaSpan™ LD36 Submersible Liquid Level and Temperature Pressure Transmitter 316 SS body, PUR 60' (18.3m) Cable, 34.65' wc (15 psi) w/ Temp output
Item #LD36-S121
- Level and temperature measurement in one sensor
- Rugged sensor designed for complete submergibility
- 316 stainless steel sensor body with polyurethane cable
- Maintenance-free vent tube with filter ensures accuracy
- Mounting kit for easy tank install and conduit termination
- Integral surge protection for lightning strikes or power surges
- Automatic temperature compensation for reliable measurement
The LD36 dual purpose submersible level and temperature pressure transmitter provides continuous liquid level measurement up to 34.65' (10.5m) of water column and temperature measurement from -40º to 257º F. (-40º to 125º C.) with a dual 4-20 mA signal output. For convenient installation with junction box termination, package your sensor with the pressure sensor mounting kit. Each kit includes a junction box with terminal strip, mounting plug and liquid tight cable connector. The LD36 level sensor is well suited for clean liquids compatible with 316 SS and polyurethane such as well water and diluted chemicals.
