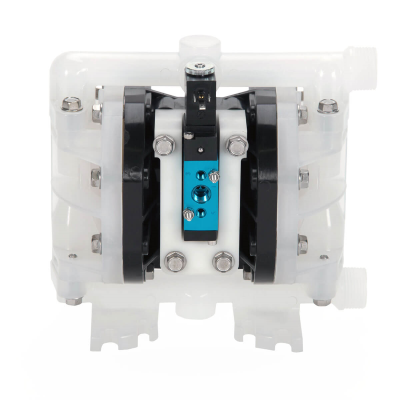

All-Flo A025-SPP-SSPE-S7L Bolted Air-Operated Double-Diaphragm Pump, 1/4 inch NPT, Polypropylene body, Santoprene® Diaphragm with Solenoid Valve 24 VDC
Item #A025-SPP-SSPE-S7L
- Max Flow = 5.7 gpm
- Max Suction Lift = 28 ft-H20 Wet
- Max Suction Lift = 14 ft-H20 Dry
- Max Pressure 120 psi
- Max Diameter Solids = 1/16"
- Porting Location: Suction Right / Discharge Right
- Stainless Steel Hardware, Standard Muffler
- Air valve only contains 3 moving parts making it the worlds simplist air valve
- Contains a Solenoid Valve 24 VDC, DIN 43650C Connector
The All-Flo A025-SPP-SSPE-S7L Is a 1/4 inch, Bolted air operated diaphragm pump. The pump is manufactured from a Polypropylene housing, a Polypropylene air section and Santoprene® diaphragms. the port locations are Suction Right / Discharge Right and Configurated with a Solenoid Valve 24 VDC, DIN 43650C Connector
