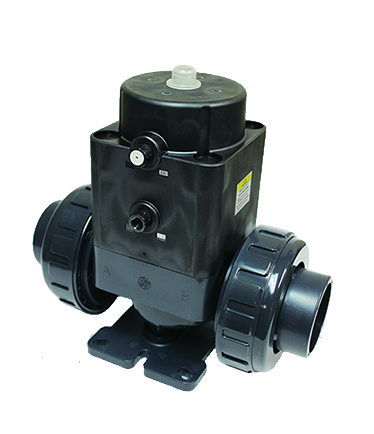

Asahi/America 1" Dymatrix™ AD-16 Diaphragm Valve, Air to Spring Normally Closed, Flanged True Union Connection, PVC Body, PTFE Diaphragm, EPDM Seals
Item #841069010
- Compact design for tight installations
- Ideal for OEM equipment and skids
- 1/2" to 2" sizes
- IPS socket, Female NPT or Flanged True Union connections
- PVC body
- PTFE or EPDM diaphragm
- FKM or EPDM seal
- 72.5 PSI (1/2" to 1) and 58 PSI (1-1/2" to 2")
- 30-122° F maximum temperature
Asahi/America Dymatrix™ AD-16 diaphragm valves are the first PVC valves designed from the ground up to be an actuated valve. This compact valve is ideal for PVC skid fabrications and water stands. The Dymatrix™ AD-16 valves are available from 1/2" to 2" sizes with PVC bodies, PTFE (stock) or EPDM (special order) diaphragms and FKM or EPDM o-rings. IPS socket, female NPT and flange connections are available. The max pressure for these valves are 72.5psi (1/2" to 1") and 58psi (1-1/2" to 2"). Max temperature is 30-122° F.
