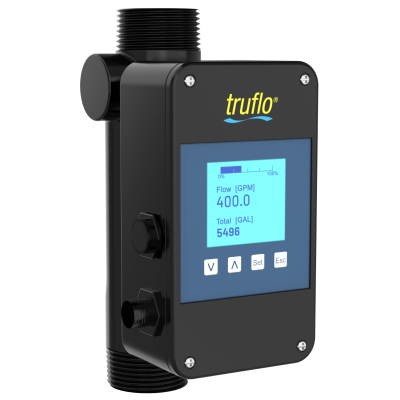

Icon Process Controls UFM-4000-75-B 3/4" Truflo® UltraFlo® 4000 Series Ultrasonic Flow Meter, Polysulfone (PSU), Blind Display, 4-20mA + Pulse Relay + RS-485 Output

Item #UFM-4000-75-B
  • Designed to Measure Very Low Flow Rates
  • Suitable for Dosing / Pulsating Flows
  • 4-20mA Output + Pulse Relay
  • IP67 Enclosure
  • Negligible Pressure Drop
  • Empty Pipe Alarm
The Truflo® Ultraflo® 4000 Series utilizes ultrasonic technology and is capable of measuring both conductive and non conductive liquids. It is an excellent choice for very corrosive liquids such as strong acids and alkalies. The UltraFlo® 4000 has no moving parts and has been engineered to measure pulsating, dosing as well as metering flow. All parts that contact the liquid are made of corrosion resistant Polysulfone.

Additional Documents:

DisplayBlind
MaterialPolysulfone (PSU)
Maximum Psi145 psi
Measuring Range0.02 - 9.5 GPM
ManufacturerIcon Process Controls
Output Type4-20mA + Pulse Relay + RS-485
Power Supply24 VDC / 3.6 W
SeriesTruflo® UltraFlo® 4000
Size3/4 in
Temperature Range14° F - 176° F
Type of productUltrasonic Flow Meter
