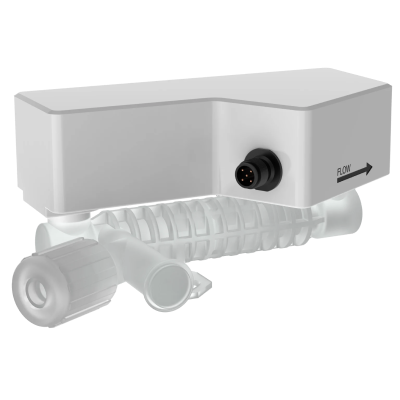

Icon Process Controls UFM-1000-37 3/8" Truflo® UltraFlo® 1000 Series Ultrasonic Flow Meter, Teflon® PFA, Flared, Blind Display, 4-20mA + Pulse Output

Item #UFM-1000-37
  • Simple to Install
  • Display Flow Rate and Totalizer
  • IP67 Enclosure
  • Negligible Pressure Drop
  • Empty Pipe Alarm
  • 4-20mA Output + Pulse Relay
The Truflo® Ultraflo® 1000 Series Ultrasonic Flow Meter Sensor utilizes ultrasonic technology to measure both conductive and non conductive liquids, and is an excellent choice for very corrosive liquids such as strong acids and alkalines. The UltraFlo® 1000 Series has no moving parts and can measure pulsating, dosing and metering flow applications. All parts that contact the liquid are made of corrosion resistant PFA Teflon®. The UltraFlo® 1000 Ultrasonic Flow Meter Sensor is characterized by its high measurement accuracy and repeatability.

Additional Documents:

Connection TypeFlared
DisplayBlind
MaterialTeflon® PFA
Maximum Psi100 psi
Measuring Range0.005 - 1.6 GPM
ManufacturerIcon Process Controls
Output Type4-20mA + Pulse
Power Supply24 VDC / 3.6 W
SeriesTruflo® UltraFlo® 1000
Size3/8 in
Temperature Range-40° F - 248° F
Type of productUltrasonic Flow Meter
