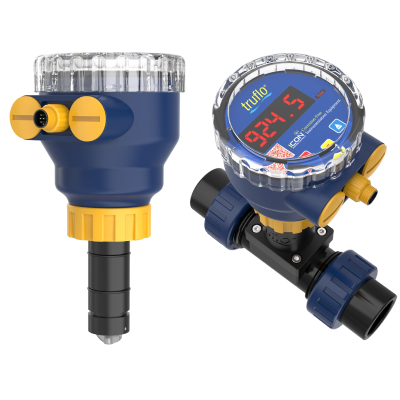

Icon Process Controls TIR-P-L-E 6" - 24" Truflo® TIR Series Insertion Style Paddle Wheel Flow Meter, PVC, EPDM Seals, LED Display, 0.3 - 33 ft/s Range, 4-20mA + Pulse + 1 Amp Relay Output

The Truflo® TIR Series Paddle Wheel Flow Meter Sensor has been designed for tough industrial applications. The TIR Series chemical flow meter sensor has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids. The plastic insertion flow meter sensor is a blind unit that provides a 4-20mA output and is internally equipped with a mini LED screen that allows the user to easily set their 4 and 20mA set points through the use of push-buttons. The re-engineered low-drag, fluid-dynamic design of the chemical paddle wheel allows it to stand alone as the industry’s most accurate flow meter sensor. Icon’s paddle wheel flow meter sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TIR Series liquid flow meter sensor, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly. The TIR insertion paddle wheel liquid flow meter sensor is available in PVC, PP and PVDF. The digital flow meter sensors can be installed into pipe sizes 1/2" - 24" using our line of comprehensive custom fittings. Icon’s complete line of insertion paddle wheel flow meter sensors will also retrofit into any Signet® style fitting. Applications: Liquid Chemical Flow Measurement, Filtration Systems, Water & Wastewater Monitoring, Industrial Chemical Distribution, Process Chemical Skids, Liquid Consumption, Discharge Verification
