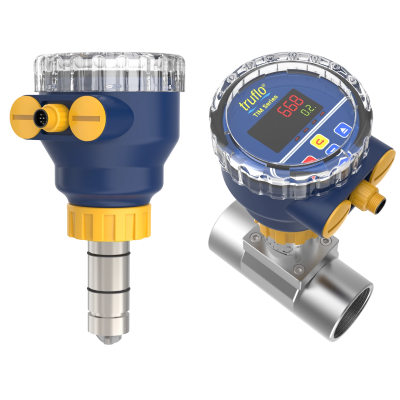

Icon Process Controls TI3M-SS-L 6" - 24" Truflo® TI3M Series Insertion Style Paddle Wheel Flow Meter, 316L Stainless Steel, Viton® FPM Seals, LED Display, M12, 0.3 - 33 ft/s Range, 4-20mA Output
Item #TI3M-SS-L
- Vivid LED Dual Display
- Cable Grip Wire Connector Combo
- Password Secured
- Retrofits into Signet® Fittings
- Double O-Ring Seal
- Tefzel® Paddle Wheel has Superior Chemical and Wear Resistance
- Revolutionary New ShearPro® Paddle Design
- Zirconium Ceramic Rotor and Bushings Provide up to 15x the Wear Resistance
The Truflo® TI3M Digital Flow Meter Sensors are easy to install with exceptional guaranteed long-life performance. The TI3M Series Paddle Wheel Flow Meter Sensors are highly repeatable, exceptionally accurate, extremely rugged, offer outstanding value and require absolutely no maintenance. TI3M Series has a process-ready output signal with a wide dynamic flow range of 0.3 to 33 ft/s / 0.1 to 10 m/s. Applications: Liquid Chemical Flow Measurement, Filtration Systems, Water & Wastewater Monitoring, Industrial Chemical Distribution, Process Chemical Skids, Liquid Consumption, Discharge Verification
