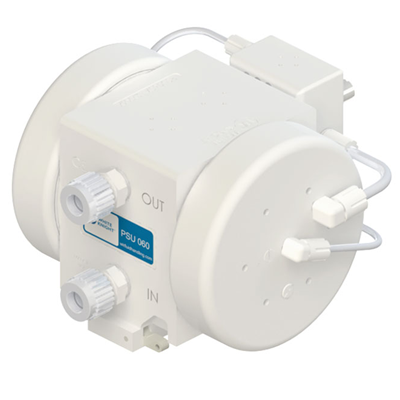

White Knight PSU060F-X00 PSU060 Pump, 62 l/min Max Flow, 210C Max Temp, 100 PSI Max Pressure, PTFE/PFA Flow Path, Metal-Free Machined Design, No Elastomer O-rings

Item #PSU060F-X00
  • Maximum Flow Rate: 62.2 L/min (15.9 gpm)
  • 100% Metal-Free
  • Process-Safe PTFE and PFA Flow Paths
  • PTFE Heads with Synchro-Thread™ for High Temperatures
  • Leak-Proof, Machined Design
  • No Elastomer O-Rings, No Leaks, Never Retorque
  • No Lubrication in Shift Mechanisms
  • No Heat Generating Electric Motors
  • Shuttle Minimizes Liquid Pulsation and Pump Vibration
  • Robust Bellows Enable Supply Pressure of 7 Bar (100 psi)
  • Dead-Head Capable Operation
  • Minimal Parts for Durable Design
  • Class 100 Cleanroom Assembly, Testing, and Packaging
  • Various Liquid Connection Options
  • No Preventative Maintenance During Two-Year Warranty
White Knight PSU060 Metal-Free PTFE/PFA pumps are ideal for ultra pure delivery and recirculation applications. They are capable of 62 L/min (16.4 gpm) flow rates, 210°C (410°F) temperatures, and can operate up to 7 Bar (100 psi) air supply pressures. It features a unique detent-free shuttle valve that improves performance and reliability by minimizing vibration, pulsation, and wear. The pump requires liquid fittings, sold separately.

Additional Documents:

IncludesOn-Board Shuttle
MaterialPTFE, PFA, Ceramic
Maximum Flow Rate (LPM)62.08 LPM
Maximum Fluid Operating Temperature (F)410°F
Maximum Psi100 psig
SeriesPSU
Type of productBellows Pump
Wetted MaterialPTFE, PFA
ManufacturerWhite Knight
