Pleated Cartridges

Harmsco Series Poly-Pleat® Hurricane® Cartridge, 1 Micron Absolute, 19-1/2" Length x 7-3/4" O.D., 29 GPM, 58 Square Foot Pleated Polypropylene Media Area, Fail-Safe

Item #PPFS-HC-90-1
  • One micron absolute rating for cryptosporidium and giardia cysts
  • Meltblown polypropylene inner layer with out layers of polypropylene scrim material for support
  • Shrink wrap standard
  • 140° F maximum temperature
  • Rigid PVC center tubes with perforations or molded polypropylene
  • Polypropylene netting standard for 2-3/4" O.D., 10" and 20" cartridges use polyethylene netting
  • Flow rates - up to 0.5 GPM ft² media
  • Pliable PVC end caps - sealing surface built in

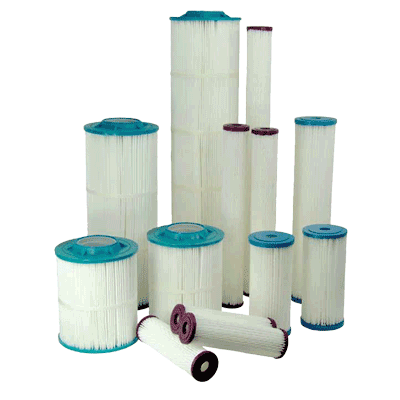

Harmsco Premium Poly-Pleat™ Series filter cartridges are designed for filter housings that utilize 2-1/2", 2-3/4", 4-1/2" and 7-3/4" O.D. high flow cartridges. These cartridges feature absolute rated one micron fiber media that removes cyst-sized particles for safe, cyst-free drinking water. The pleated polypropylene filter media provides more surface area for longer filter life and increased particle removal. End caps, center tubes and media are thermally bonded as one integral component for added strength and to provide superior end sealing. FDA listed materials are for use in potable water and liquid food applications.

Poly-Pleat™ Series filter cartridges are ideal for use in the following applications:
  • Reverse Osmosis Pre-Filtration
  • Municipal Drinking Water Filtration
  • Commercial and Residential Drinking Water Filtration
  • Desalination Pre-Filtration
  • Industrial Water Filtration
  • Chill Water Loop Filtration
  • Food and Beverage Filtration
  • Marine and Aquatic Filtration

Additional Documents:

SeriesPoly-Pleat Series
ManufacturerHarmsco
MaterialPVC
CategoryFiltration
Elastomer MaterialPliable PVC
End TypeDouble Open End
Length19-1/2"
Filtration MediaPolypropylene
Micron Rating1
