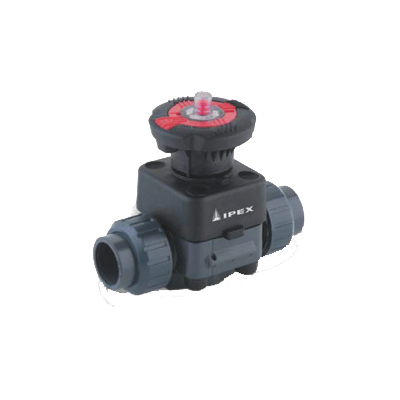

IPEX Series DK 1/2" Manual Diaphragm Valve, Flanged Connection, CPVC Body, EPDM Diaphragm, EPDM Seal
Item #DKOC103
- Manual handwheel operation
- Spigot, true union socket or threaded and flanged end connections
- PVC, CPVC, PP or PVDF body material
- 1/2" through 2-1/2" sizes
- EPDM, FPM or EPDM backed PTFE Diaphragms
- Up to 150 psi at 73° F
- Improved flow rate
- Facilitates precise linear flow regulation
- Locking mechanism allows the manual handwheel to be adjusted and locked in over 300 positions
IPEX's new DK series diaphragm valves are available in four body styles in PVC, CPVC, PP or PVDF with three choices of diaphragm materials (EPDM, FPM or PTFE). With the ability to be mounted in any position, the DK is the ideal solution for modulating flow in either very clean or abrasive slurry applications.
The new innovative and patented Dialock® locking mechanism allows the manual handwheel to be adjusted and locked in over 300 positions. The re-designed weir-style body has significantly improved the DK's flow rate compared to the old design and it facilitates precise linear flow regulation through the valve's full range of operation. The new DK is available in manual and pneumatic control styles.
