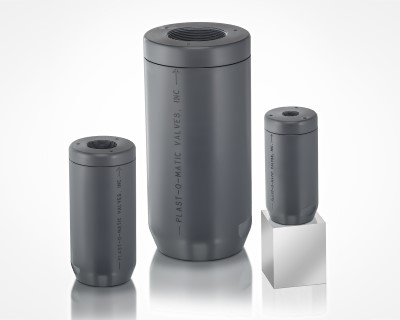

Plast-O-Matic CARD200EPS-PV CARD Series 2 IN Combination Air Release and Degassing Valve Socket, PVC Body, EPDM Seal
Item #CARD200EPS-PV
- When three types of venting valves are needed, this valve will serve the function of all three
- Functions as Air Release Valve, which releases air during system start up
- Functions as Degassing Valve, which provides continuous degassing
- Functions as Vacuum Relief Valve, which prevents pipeline vacuum in case of leaks or siphon
- Self-guided, high buoyancy float, in combination with the elastomeric sealed poppet assures leak tight sealing with minimal emission of process fluid
Series CARD United State Patent #10683946. Combination Air Release and Degassing Valve in a single unit. Also provides Vacuum Relief Valve function, which prevents pipeline vacuum in case of leaks or siphon. Connections from 1" - 4" in a variety of materials; sizing is based on air volume requirements.
