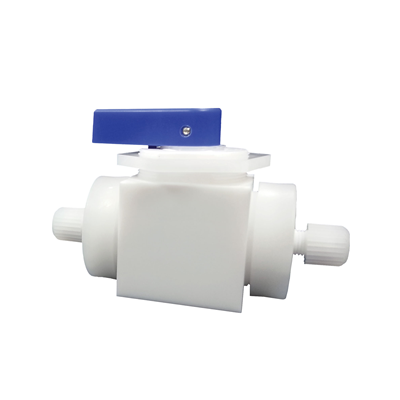

White Knight BV-44-P iPolymer Manual Ball Valve, PTFE Flow Path, 1/4" FNPT Connections, 1/4-Turn
Item #BV-44-P
- PTFE Wetted Materials
- Reliable Low-Torque Manual Operation
- Quarter-Turn with Positive Stops
- Design Accommodates Partial Open Position for Metered Flow
- Can be Panel Mounted
- Can be Used in High-Temperature Environments
- Maximum Pressure: 120 psi
- Media Vacuum: 25 in Hg
- Media Temperature Range: 32° - 212°F (0° - 100°C)
- Ambient Temperature Range: 32° - 140°F (0° - 60°C)
- 1/4" FNPT Connections
iPolymer BV-44-P Manual Ball Valves feature an all PTFE wetted surface design that is ideal for harsh chemical and corrosive media applications. PTFE Manual Ball Valves are also well suited for clean room and deionized water applications. The body, stem, ball and ports are constructed from PTFE. For standard applications, external non-wetted components are constructed from Natural PVDF and Polypropylene.
