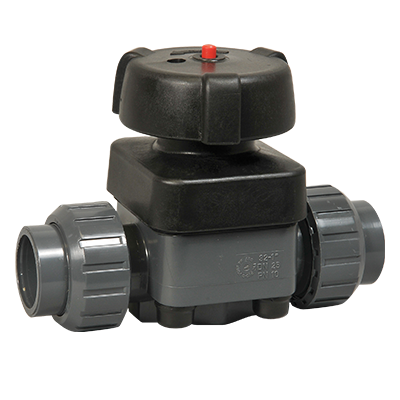

IPEX Duraplus VM Series 3" ABS Diaphragm Valve with EPDM Diaphragm
Item #624-109
- High-Impact Strength and Ductility(which combine to give exceptional toughness)
- Non-Toxicity
- Abrasion Resistance
- Broad Operating Temperature Range
- Good Chemical Resistance
IPEX VM Series Diaphragm Valves are the ideal solution for modulating flow and precise throttling in a variety of applications. The compact modular design allows for installation in any orientation, simple elastomer replacement, and possible conversion to an automated valve without removing the body from the line. Pressure rated to 150 PSI at 73°F. Sizes 1/2" to 3".
Duraplus is made from a specially formulated acrylonitrile copolymer, exhibiting high impact strength, outstanding ductility, broad chemical resistance and long-term UV resistance at operating temperatures from -40°F to 158°F, and pressures from 75 to 230 psi (rated at 73ºF).
Half the weight of copper and one-sixth the weight of steel pipe, Duraplus is easy to handle and simple to install using DuraplusTM solvent cement. Extruded pipe and dimensionally matched molded fittings and valves are available from 3/8" to 12".
