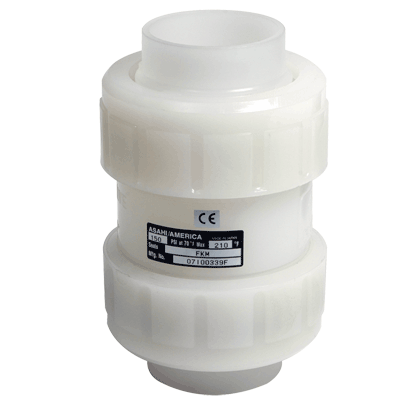

Asahi/America 2" Ball Check Valve, Polypropylene Body with Butt-Fusion Ends

Item #1224020
  • Uniseat/seal of EPDM or FKM
  • Ball is the only moving part. It unseats to permit flow in one direction but seals against seat to prevent backflow.
  • May be used vertically or horizontally
  • Minimum shut-off of 5 psi
  • All sizes rated for full vacuum service
  • Solid thermoplastic ball
The Asahi/America ball check valve employs a free moving ball, which unseats to permit flow in one direction, but seals against a seat to prevent backflow. It may be installed vertically or horizontally. Also available as foot valve for suction side of pump. Typical applications include: Chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, power plants.

Type of productBall Check Valve
ManufacturerAsahi/America
Connection TypeButt-Fusion
Elastomer MaterialEPDM
Body MaterialPolypropylene
Size2"
